Emission Control
We have the emission control solutions you need.
You need a partner with the know-how to analyze your specific needs and design an appropriate solution to fulfill them. Westair Filtration focuses on individual solutions for individual customer needs. Our combination of know-how and our extensive product offering enables us to begin with standard products, then specify and design tailored solutions that precisely meet our customers' needs.
Our dust collection devicescan effectively control the emission to lower than allowed standard, thus has improved community and working environment. Our customers recognize this as the most sufficient and economical. We understand your industry and production processes
Our customers benefit from our global knowledge base and the experience and expertise that we have gained from previous installations. We deliver unbeatable reliability, low energy consumpmion and compliance with all mandatory requirements for a wide range of applications in many different industries all over the world.
To discuss your specific needs and learn how Westair Filtration can provide the Emission controlsyou need in Perth Western Australia, Contact Us today.
Dust Extraction
We have the dust extraction solutions you need.
To discuss your specific needs and learn how Westair Filtrationcan provide the dust extraction you need inPerth Western Australia, Contact Us today.
W
FILTRATI N
ESTAIR
WESTAIR FILTRATION
Authorized Agent For
Dantherm Filtration
Ph (08) 9200 4257
Fx (08) 9200 4258
Mob 0417 857 795
darren_westairfiltration.com.au
paul_westairfiltration.com.au
The Emission Control Specialists
in Dust and Fume
MJC Mini Tubular
Cartridge Filter
FMC200 Tubular
MJC Tubular
SiloSafe Tubular
NPF Higher Pressure
Auto M-Z Filter
FM Filter
FMC200 Tubular Cartridge Filter
The FMC range of reverse jet cartridge filters was developed for continuous operation in industrial process filtration and dust collection applications incorporating cartridge technology for maximum cleaning efficiency and extended life. Also, when paired with our ECO Smart Cutting Table can save you thousands per year. CFM Range: 1,825 to 12,300 CFM
Tough galvanised steel construction
Weatherproof for exposed locations
Integral pre-separation chamber
All maintenance from unit front
Independently tested (FMCZ) with ATEX compliant features for explosive dusts
Efficient cross flow / down flow inlet air pattern
Wide range of integral or remote fans
Typical dust control and process applications
Bulk materials handling conveying, screening, sieving, mixing, bin/silo venting Building materials manufacture and distribution
Chemical, plastics and pharmaceutical powders
Welding, plasma and other cutting processes.
MJ Filter
MJC Tubular Cartridge Filter
The MJC range of reverse jet tubular bag dust collectors was developed for continuous operation in industrial process filtration and dust collection applications incorporating cartridge technology for maximum cleaning efficiency and extended life. CFM Range: 1,000 to 40,000 CFM
Standard filter range from 48 to 739m2; larger units possible
Typical airflow volumes up to 60000m3/h, or more, subject top application Robust weatherproof welded steel construction Space saving integral fans from 0.75 to 18.5kW
Independently tested with ATEX compliant features for St1, St2 and St3 dusts Integral pre-separation chamber, cross flow / down flow inlet air pattern
Wide range of discharge and waste handling options
Bulk materials handling conveying, screening, sieving, mixing, bin/silo venting
Shot, sand and bead blasting
Building materials manufacture and distribution
Dust extraction for all dry free flowing powders and granular material Welding and cutting laser, plasma, arc
MJC Mini Tubular Cartridge Filter
The MJC Mini range of compact reverse jet tubular cartridge dust collectors was developed for continuous operation in industrial process filtration and dust collection applications incorporating cartridge technology for maximum cleaning efficiency and extended life.
Standard filter range from 4 to 40m2
Robust weatherproof fully welded steel construction
Space saving integral fans from 0.75 to 3.0kW
4.0kW higher pressure fan available
ATEX compliant features for St1, St2 and St3 dusts
Integral pre-separation chamber, cross flow / down flow inlet air pattern Modular interchangeable assemblies
Materials handling conveying, screening, sieving, mixing, bin/silo venting
Dust extraction for all dry free flowing powders and granular material
Welding and cutting processes
Silosafe Filter
SiloSafe Tubular Cartridge Filter
The SiloSafe compact reverse jet tubular cartridge dust collector, available as a venting filter or with an integral fan, was developed specifically for silo and bin venting applications incorporating cartridge technology for maximum cleaning efficiency and extended life. CFM Range: 1,500 CFM
Robust fully welded steel, hot dip galvanized construction
High strength, independently tested to resist explosions, for ATEX compatibility
Tough integral mounting flange
Generous internal volume with 24m2 filter area
Low height, minimal visual impact
Safe maintenance from clean air side
Typical applications
Venting of pneumatically filled silos and bins
Cement batching and distribution facilities
Venting continuously filled silos and day bins
Auto m-z Filter
The Auto M-Z series is a robust, free standing filter range with an automatic shaker cleaning system, It is the latest model based upon over thirty years.
Air Silencers with top or side discharge
Weather cowl for silencer
Fan-shaker controllers
Explosion panel alarm switch
Differential pressure switch or indicator
Efficient, Automatic, electric motor driven shaker mechanism
Neat appearance suitable for commercial applications
Weather proof for location anywhere
NPF Higher Pressure Cartridge Filter
NF3000 Filter
The NPF reverse jet tubular cartridge dust collector was developed for continuous operation in industrial process dust collection applications with a working vacuum up to 30,000 Pa. It is available in four convenient sizes.
Typical airflow volumes from 2000 to 7500 m3/h
High efficiency exceeds 99.93% in normal applications Robust weatherproof bolted construction Galvanized body and hopper for long life ATEX compliant for explosive dusts in categories St1, St2 and St3
Quick release galvanized steel waste bin
Easy servicing from unit front
Typical dust controland process applications
Centralised solution for welding stations
Metal cutting operations, eg. plasma cutting

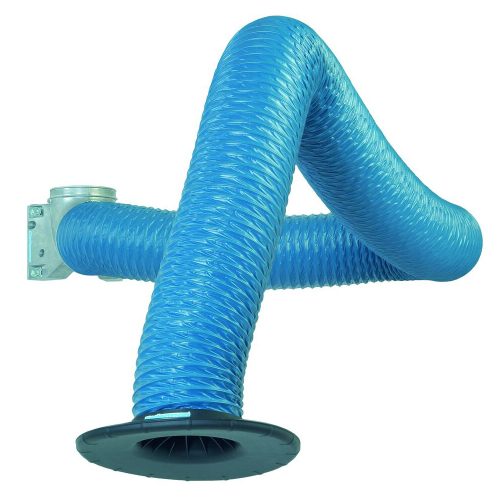

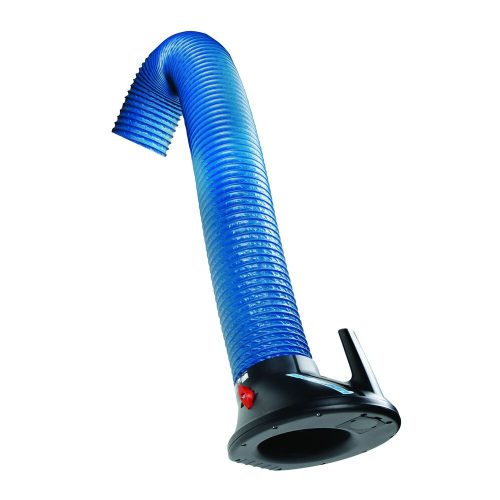

Serving processes with long or small diameter ducting Multiple work stations served by flexible arms with focused hoodsDust extraction for all dry free flowing powders and granular material
Westair Filtration provides a quality service structure individually customised to suit your needs. Westair Filtration can supply and install a comprehensive range of filter units, fans and ducting to suit all applications.
Westair has a background in servicing all makes and models of dust collection units; e.g. Envelope bags, Cartridges, Snap Cuff bags etc. We use a renowned worldwide product, with offices located in Europe, America and Asia and now in Western Australia.
OUR CORPORATE VALUES
Trust
Commitment
Integrity
Loyalty
Quality
3
Today’s customers demand more than high performance air filtration products, they need a partner with the know how to analyze their specific needs to design an appropriate solution to fulfill them. Our combination of extensive products, experience in service and installations enables us to design tailored solutions to precisely meet our customer’s needs. We can provide a specific on site solution for preventative maintenance, supplies and service.
To discuss your specific needs and learn how Westair Filtration can provide the reliable, efficient and cost effective solutions you need, please contact our Customer Service Department.
Westair Filtration focuses on individual solutions for individual customer needs. Our combination of know-how and our extensive product offering enables us to begin with standard products, then specify and design tailored solutions that precisely meet our customers' needs.
QF Duct
Compact Filter fd
Metal Industry
PVC Duct
Cyclopac Filter
Oil Mist Filter
Fume Scrubbers
FS Filter
Safetyflow Fume CB
Chemco Fans
S Series Fiter
DF Company Profile
Contacting Westair Filtration is easy and convenient. For immediate assistance, please call during normal business hours.You can also use the contact form below to let us know how we can be of service to you. A customer service representative will contact you within one business day.
Dust Filtration
We have thedust filtration solutions you need.
To discuss your specific needs and learn how Westair Filtration can provide the dust filtration you need in Perth Western Australia, Contact Us today.
Air Filtration
We have theair filtrationsolutions you need.
Our dust collectiondevicescan effectively control the emission to lower than allowed standard, thus has improved community and working environment. Our customers recognize this as the most sufficient and economical. We understand your industry and production processes
To discuss your specific needs and learn how Westair Filtration can provide the air filtration you need in Perth Western Australia, Contact Us today.
